    16 Channel PoE Camera System | 8MP 4K Resolution,Color Night Vision

    * 4K 8MP Mixed Cameras
    * 16-PoE Port NVR, Auto Plug & Play
    * Pre-installed 4TB HDD, Extendable 20TB
    * Smart Detection & Playback
    * GuardViewer for Remote View & Playback
    SKU: B0D9HDXSB1
    Regular Price $1,399.99 USD
    Shipping calculated at checkout.
    Camera Quantity: 16 Pieces
    Camera Color: White

    Hurry up! Only 1 left

    Estimated Delivery: Jun 10 - Jun 14
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    4K Detailed Video Capture

    4K (8MP) means what you see is what you get. No guesswork, no blurry evidence — just crystal-clear footage when it matters most.

    Crystal Clear Color Night Vision

    nfrared gives you a gray ghost. Dual-light gives you the real picture — in color. When someone shows up at 2 AM, you don't want to guess if it was a blue car or black shirt. You want to know.

    hightlight_24_7_continuous_recording_nvr

    Round-The-Clock Continuous Recording

    No gaps, no blind spots. 16 channels run 24/7, capturing every moment on reliable local storage — so your system never misses a thing while you're asleep or away.

    hightlight_expendable_hdd_capacity_nvr

    Extended 20TB Storage Max For Longer Retention

    Two SATA bays support up to 20TB of total storage — pre-installed drives mean plug-and-play recording from day one. H.265 compression maximizes recording time so you keep weeks of footage without running out of space.

    hightlight_zero_monthly_fee_nvr

    No monthly fees, no cloud subscriptions, no hidden costs.

    All recording and storage stays local on your NVR — your footage, your server, your control. One-time purchase, lifetime access.

    hightlight_motion_smart_ai_detection_nvr

    Smart Motion Detection, Without Annoying False Alerts

    Old motion detection: everything triggers an alert. Your phone buzzes all night for a cat. AI detection: learns what's a person, what's a vehicle, what's just noise. Redefined motion detection — smarter, quieter, and actually useful.

    Sufficient and easy-to-use features you will get right now

    black out the specific areas from original videos to protect the personal privacy

    Privacy Protection

    Want cameras that actually show you what's happening at night, not just blurry infrared shapes?

    The 4COVR 16 channel security camera system pairs Dual Light bullet cameras with Dual Light turret cameras — both equipped with warm light technology that kicks in when someone approaches, giving you full-color identification footage after dark. The bullet cameras cover outdoor perimeters. The turret cameras handle entrances and open areas. All 16 channels run through a single 4K NVR via PoE.

    One cable per camera handles power and data. Plug in, the NVR recognizes each camera automatically. No electrician, no adapter clutter. The NVR ships with 4TB of local storage. Two SATA bays let you expand to 2×10TB — 20TB total when full. All footage stays local, yours to keep, no subscription.

    Check live view or playback from anywhere using the free mobile app. When the AI detects a person or vehicle, you get a push notification instantly. Two-way audio lets you talk through the cameras from the app — greet visitors or warn off intruders in real time.

    Warm light night vision activates when motion is detected at night, giving you clear color footage instead of washed-out infrared. IP67-rated housing handles outdoor conditions year-round.

    Key Features

    • 16 Channel 4K NVR with 16 PoE Ports — Auto Plug & Play, cameras auto-recognized on connection
    • 16pcs Mixed 8MP Dual Light Cameras — 8MP bullet for outdoor perimeters, 8MP turret for entrances and open areas
    • Active Deterrence: Warm Light + Siren — Warm light and siren trigger automatically on detection, deterring intruders before you check your phone
    • Dual Light Warm Light Night Vision — Warm light activates on detection, full-color night vision up to 15m, IR extends to 30m
    • Up to 2×10TB Storage, Expandable — 4TB included, 2 SATA bays support up to 20TB total, no monthly fee
    • AI Human & Vehicle Detection — reduces false alerts from animals, branches, and weather
    • 4K Ultra HD Recording — 16 channel 24/7 continuous local recording at 8MP resolution
    • Real-Time Push Alerts — AI events push instant notifications to your iOS/Android phone
    • Remote Viewing & Playback — Free mobile app and browser access, view live or playback from anywhere
    • AI Smart Playback — Search recordings by event type, find footage in seconds
    • Two-Way Audio — Built-in mic and speaker on each camera, talk through the app
    • IP67 Weatherproof — Outdoor rated, -20°C to 50°C, rain and dust resistant
    • 2-Year Warranty + Lifetime Technical Support — Backed by our commitment to your system

    What is for

    Designed for properties where night vision quality matters — residential homes, small businesses, farms — combining outdoor perimeter and entry coverage with full-color warm light night vision.

    Standard infrared blurs faces. Warm light night vision reads plates and recognizes features. This 16 channel system delivers both.
    Camera Datasheet
    Specification Name Specification Value
    Camera Shape Waterproof Bullet & Turret Mixed
    Bracket & Installation Celling and Wall- Mount
    Filed of View approx 110°
    Lens 2.8mm fixed lens
    Night Vision Smart Dual Light distance 15m. Spotlight turns ON when a target appears to record in full-color night vision.
    Video Resolution Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/ 4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360)
    Smart Alarm Motion,Human & Vehicle,Cross Line,Perimeter,Face Detection
    Audio Talk Two-Way audio
    Power Input 12 VDC ± 10%, < 8W
    PoE Power IEEE 802.3af, 48V, active
    Operating Temperature -20℃-(+50)℃, 10%-90%RH
    NVR Datasheet
    Specification Name Specification Value
    Max. Channels 16CH Video Input, Max. 12MP resolution
    Max Input/Record 160Mbps/128Mbps
    Display Output 1*HDMI, 4K (3840 × 2160) 1* VGA ,1920 × 1080
    Simultaneous Playback Smart Off: 2 x 12MP/16 x 720P Smart On: 2 x 4K/ 16 x 720P
    HDD Capacity 2 SATA Interfaces, each max 10TB capacity
    Audio Input/Output 1*Input / 1*Output
    Alarm In/Output 8*Input / 2*Output
    USB Interface 1 * USB2.0, 1* USB3.0
    Network Interface 1*RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
    PoE Interface 802.3af/at, 16*RJ45 10 M/100 M self-adaptive Ethernet Interface
    PoE Max Power Max 30 W for single port, Max 240 W in total
    Smart Event Search YES
    Mobile App Guard Viewer
    Power Supply (without HDD) AC 100~240V, ≤ 12W
    Working Environment -10 ℃ to 50 ℃ (14 ℉ to 122 ℉),Humidity ≤ 90% RH (non-condensing)
    Weight (without HDD) ≤ 2.7Kg (6.0lb)
    Dimensions 380mm × 322mm × 53mm (15.0"×12.7"×2.1")
    Documents
    Camera Specification Sheet Download
    NVR Specification Sheet Download
    Quick Guide Download
    User Manual Download

    Dimensions & Interfaces

    box_inside_37Y_97k_16ch_kit

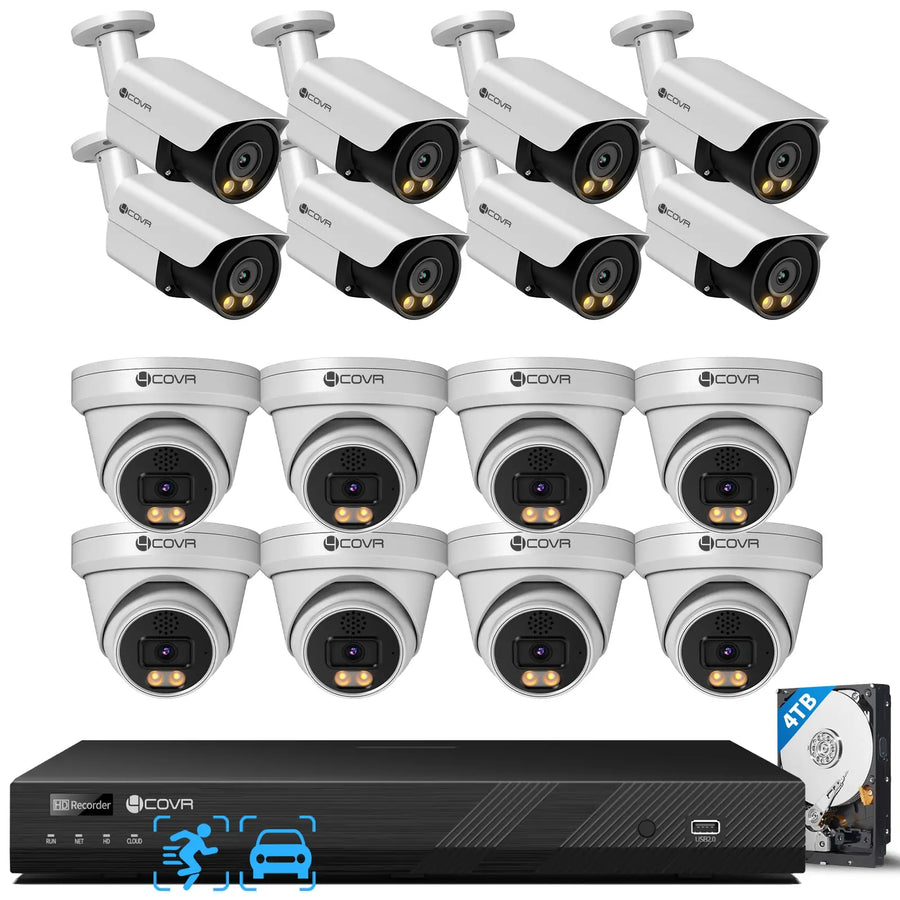

    • 1. 16ch PoE NVR Unit *1
    • 2. 37Y Dual-Light Bullet Camera * (8)
    • 3. 96K Dual-Light Turret Camera * (8)
    • 4. 4TB Hard Disk * 1
    • 5. Mouse * 1
    • 6. 1.5m Ethernet Cable * 1
    • 7. 18m Ethernet Cable * (8) & 30m Ethernet Cable * (8)
    • 8. NVR Power Cord * 1
    • 9. Mounting Screw Groups & Driver *(16)
    • 10. Waterproof Lid * (16)
    • 11. User Manual * 1

    Turely Plug & Play Power-ON & Connection

    Complete the installation, configuration within half an hour.

    diagram_connection_system_image_16ch_kit

    FAQs

    Find quick answers to common questions

    Product & Usage

    Can the NVR system support simultaneous access from multiple viewer?

    Yes, max 128 users for remote view

    Does this NVR system support 24/7 recording?

    Yes, 4COVR Camera System supports 24/7 recording,Not only that, it support event-triggered recording to save critical footage. all recording will be overwritten if the storage is full.

    Does 4CVOR NVR support recordings backup?

    Yes, normally you can use protable HDD or U-disk to export the critical recordings as evidence.Just plug the units into NVR through USB port ( better USB3.0). Search and select the footage that you need.After clicking "backup" button,the data will be saved into units.

    How many channels of playback and what search modes?

    it's determined by the NVR model and performance ,please see the data sheet to find out. all recordins can be searched by Time/Date, Channels, Events,etc.

    How do I enable remote access of security camera system?

    1. Put the camera system into an internet-enable condtion and make sure it's able to aceess internet already after simple setup. 2. Download mobile app and register one cloud account. 3. Add the NVR unit into mobile app by unique ID. all done!

    Shipment & Warranty & Payment

    1. What are your payment options? And what currencies do you support?

    You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details ofPayment Policy.

    2. How much are the customs duties?

    Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.

    3. Where can you ship? How long will it take to receive my items?

    We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries. And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are from and shipped to.
    See details here Shipping & Delivery Policy.

    4. Is there an option to extend the warranty?

    Yes, we provide compatible parts and add-ons to extend the life of your system.

    5. Do you provide instruction manuals or usage guides?

    Every product comes with a detailed user manual, and digital guides are available online.

    6. How fast is shipping and delivery?

    Orders ship within 72 hours, and delivery typically takes 3-5 business days.

    7. Do you offer bulk or corporate purchasing options?

    Yes, 4COVR provides special pricing and packages for business or team orders.

    8. How can I contact customer support if I need help?

    You can reach our support team by email or phone — we’re here to assist you.
