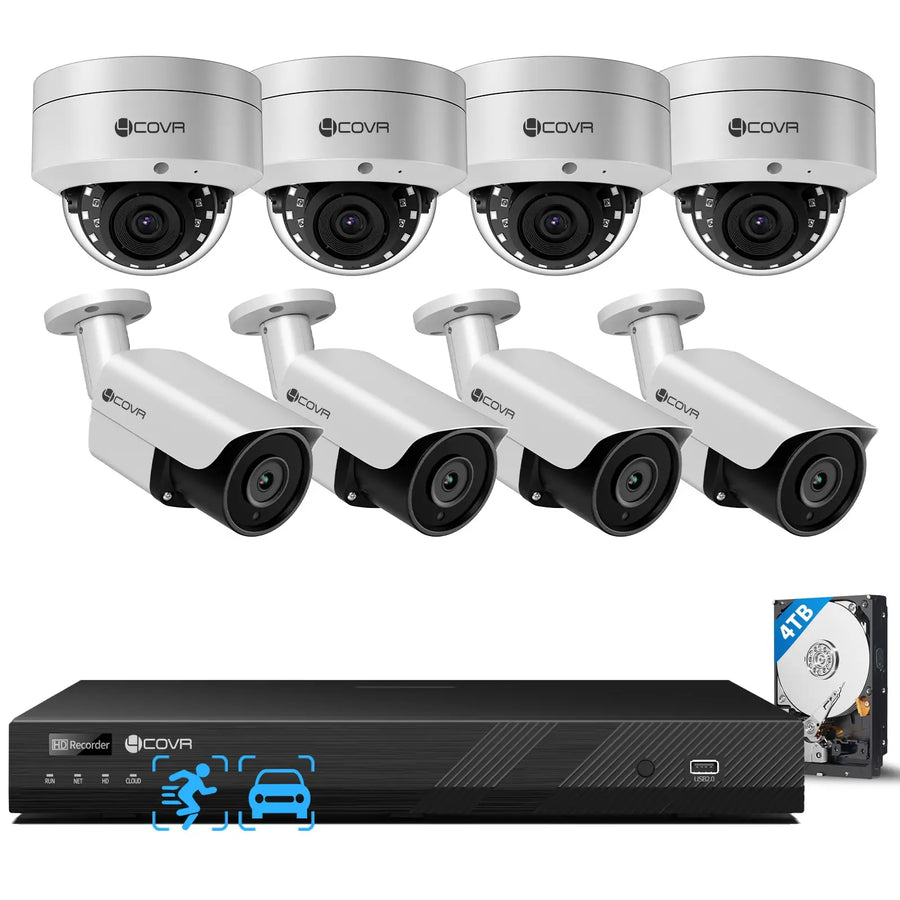

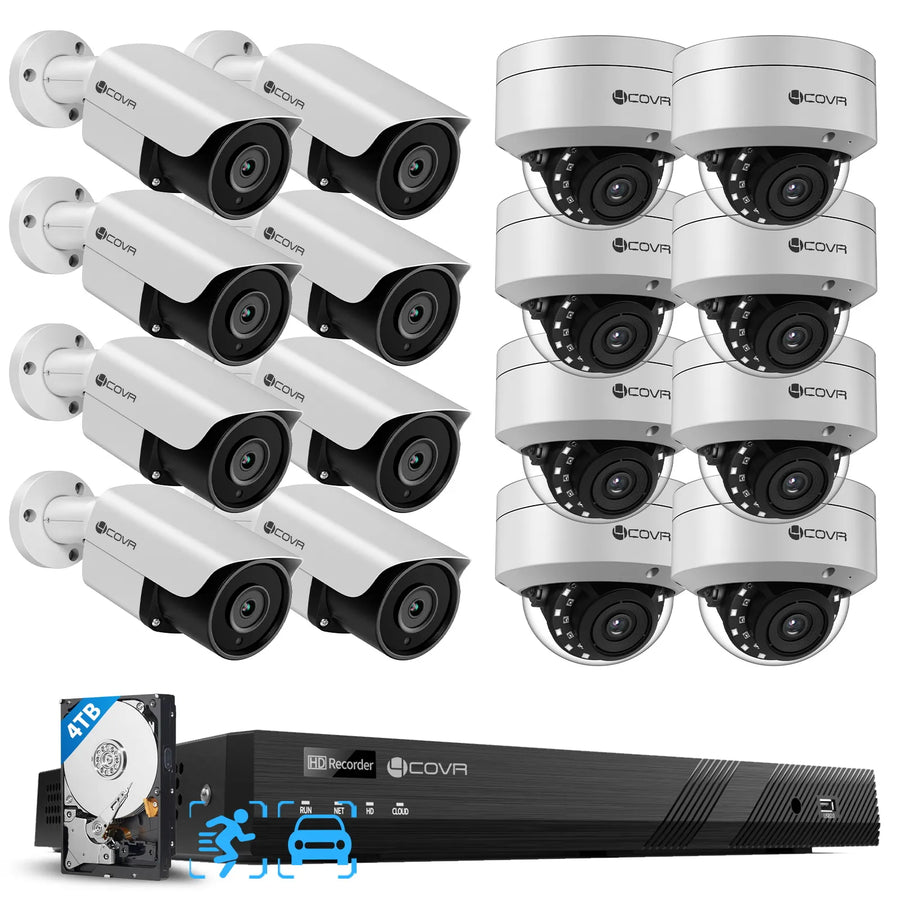

    16CH PoE NVR System | 8MP IP67 Bullet + IK10 Dome Mixed, No Blind-Spots

    * Mixed 8MP Camera, IP67 & IK10 Rating
    * 16-Port PoE NVR, Auto Plug & Play
    * 4TB HDD installed, Extendable 20TB
    * Real-Time Event Push
    * AI Smart Playback
    * GuardViewer App
    SKU: B0D6Z5HZ2D
    Regular Price $799.99 USD
    Shipping calculated at checkout.
    Camera Quantity: 8 Pieces
    Camera Color: White

    Hurry up! Only 2 left

    Estimated Delivery: Jun 10 - Jun 14
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

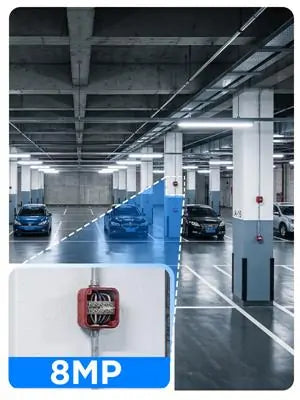

    Higher Pixel, Record more details

    8MP (4K) resolution captures footage at 3840 × 2160 pixels — that's 4× the detail of standard 1080p. Read license plates at distance, identify faces with clarity, and capture fine details that lower resolution cameras simply miss.

    Anti-Tamper, rely on IK10 Vandal-proof

    IK10-rated dome camera withstands deliberate impact — withstands hammers, crowbars, and hard knocks. Ideal for public-facing installs like hallways, lobbies, and entryways where tampering is a risk.

    hightlight_poe_connection_nvr

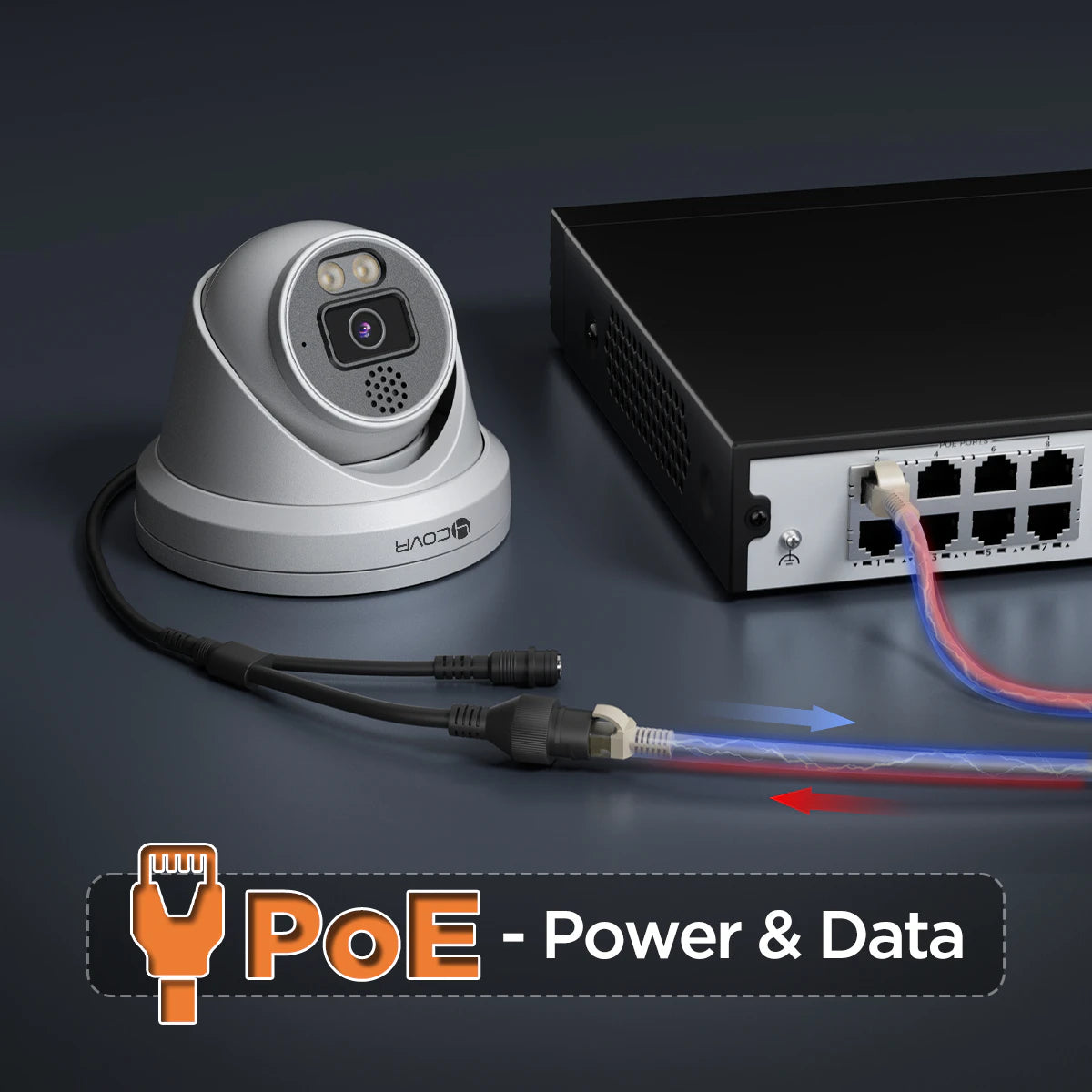

    Only One Cable, that PoE needs

    Forget the cable mess. PoE simplifies security camera setup to its core: connect the camera, the NVR handles the rest. One cable. Power and data. That's it.

    hightlight_24_7_continuous_recording_nvr

    4/7. No stopping. No gaps

    Motion-triggered cameras miss what happens before the trigger. 4COVR records everything, always — so when something goes down, you have the full story, not just the last 5 seconds. 24 hours a day, 7 days a week.

    hightlight_zero_monthly_fee_nvr

    Don't use Subscription Service, that look like a trap.

    Cloud storage sounds convenient — until you see the monthly bill. 4COVR records everything locally, zero ongoing fees. Buy the system once, own your footage forever. That camera brand charging $9.99/month? They're making more off you than the hardware.

    hightlight_onvif_rtsp_3rd_party_integration_nvr

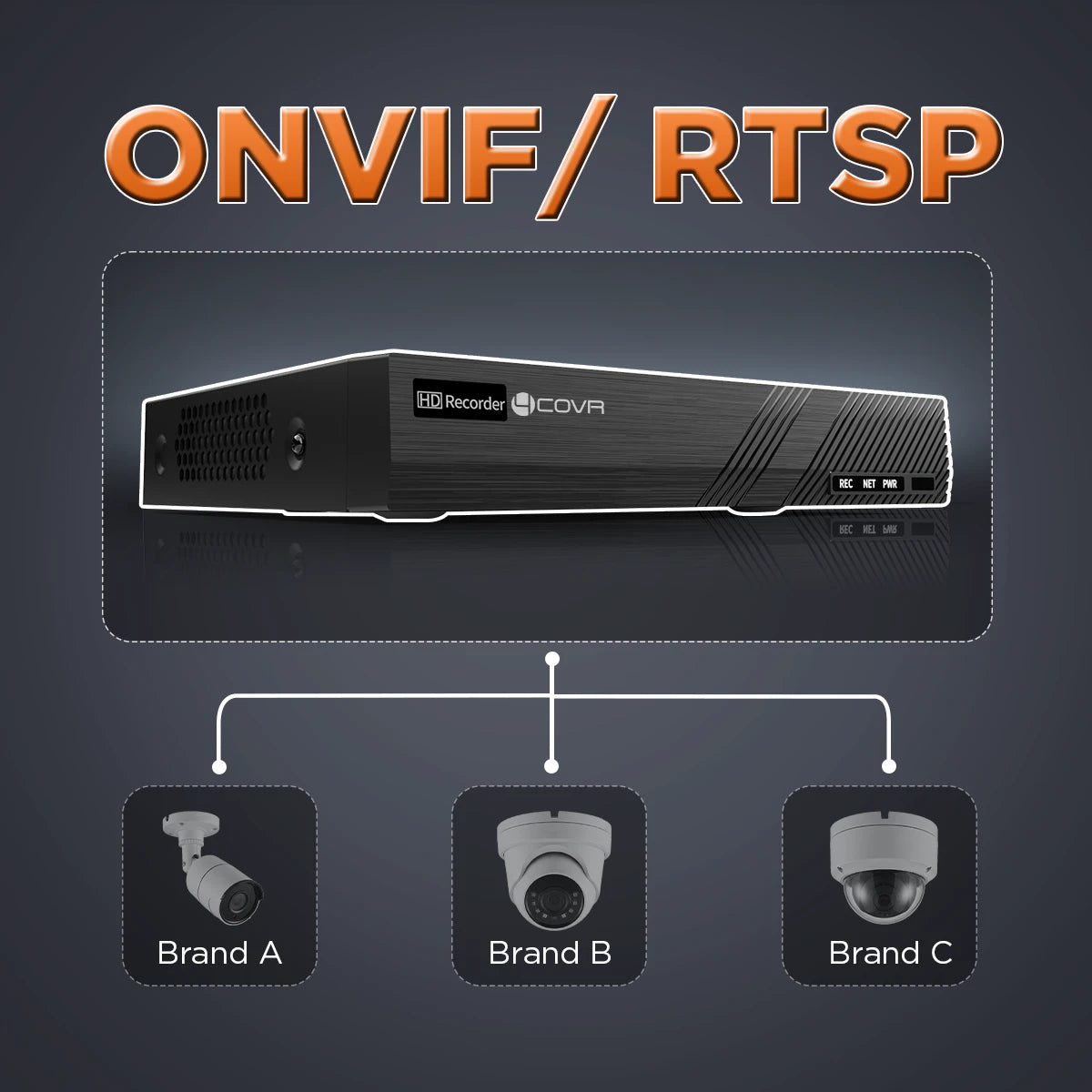

    Allowing 3rd-Party Camera Integration

    ONVIF/RTSP-compliant NVR works with third-party cameras from Dahua, Hikvision, Uniview, and more. Mix and match brands without being locked into a single ecosystem — your existing cameras may already be compatible.

    Sufficient and easy-to-use features you will get right now

    black out the specific areas from original videos to protect the personal privacy

    Privacy Protection

    How many zones does your property have that need different types of coverage?

    The 4COVR 16 channel security camera system handles exactly that — a mixed kit of 8MP bullet cameras outdoors and 8MP vandal-proof dome cameras indoors, all running through a single 4K NVR. Bullet cameras cover fence lines, gates, and driveways. Dome cameras handle hallways, entry points, and warehouse interiors. One cable per camera via PoE. Plug in, the NVR recognizes each camera automatically. No electrician, no adapter clutter.

    The NVR ships with 4TB of local storage. Two SATA bays let you expand to 2×10TB — 20TB total when full. All footage stays local, yours to keep, no subscription.

    Check live view or playback from anywhere using the free mobile app. When the AI detects a person or vehicle, you get a push notification instantly.

    Outdoor bullet cameras are IP67-rated for weather resistance. Indoor dome cameras carry IK10 impact protection plus IP67 weatherproof rating. Both handle temperatures from -30°C to 60°C. Built-in microphone on every camera adds audio monitoring across all zones.

    Key Features

    • 16 Channel 4K NVR with 16 PoE Ports — Auto Plug & Play, cameras auto-recognized on connection
    • 16pcs Mixed 8MP Cameras — 8MP bullet for outdoor perimeters, 8MP IK10 dome for indoor protection
    • Up to 2×10TB Storage, Expandable — 4TB included, 2 SATA bays support up to 20TB total, no monthly fee
    • AI Human & Vehicle Detection — reduces false alerts from animals, branches, and weather
    • 4K Ultra HD Recording — 16 channel 24/7 continuous local recording at 8MP resolution
    • Real-Time Push Alerts — AI events push instant notifications to your iOS/Android phone
    • Remote Viewing & Playback — Free mobile app and browser access, view live or playback from anywhere
    • AI Smart Playback — Search recordings by event type, find footage in seconds
    • Built-in Microphone — Audio monitoring on each camera, feeds to NVR and app
    • IP67 + IK10 Dual Protection — IP67 weatherproof bullet cameras, IK10 + IP67 vandal-proof dome cameras
    • Smart IR Night Vision — IR LED up to 30m, 110° wide-angle fixed lens across all cameras
    • 2-Year Warranty + Lifetime Technical Support — Backed by our commitment to your system
    What is for
    Designed for properties that need both outdoor perimeter coverage and indoor tamper protection — small businesses, warehouses, retail floors, offices — all covered by one 16 channel system.
    Outdoor coverage. Indoor protection. One NVR, 16 cameras, zero subscription fees. This mixed kit covers what separate systems can't.
    Camera Datasheet
    Specification Name Specification Value
    Camera Shape Water-Proof Bullet & Vandal-proof Dome Mixed
    Bracket & Installation Celling or Wall mount
    Filed of View approx 110°
    Lens 2.8mm fixed lens
    Night Vision Smart IR, Black&White,30 meters
    Video Resolution Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/ 4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360)
    Smart Alarm Motion,Human & Vehicle,Cross Line,Perimeter,Face Detection
    Audio Talk Built-in Mic ,No Speaker, One-way audio
    Power Input 12 VDC ± 10%, < 8W
    PoE Power IEEE 802.3af, 48V, active
    Operating Temperature -20℃-(+50)℃, 10%-90%RH
    NVR Datasheet
    Specification Name Specification Value
    Max. Channels 16CH Video Input, Max. 12MP resolution
    Max Input/Record 160Mbps/128Mbps
    Display Output 1*HDMI, 4K (3840 × 2160) 1* VGA ,1920 × 1080
    Simultaneous Playback Smart Off: 2 x 12MP/16 x 720P Smart On: 2 x 4K/ 16 x 720P
    HDD Capacity 2 SATA Interfaces, each max 10TB capacity
    Audio Input/Output 1*Input / 1*Output
    Alarm In/Output 8*Input / 2*Output
    USB Interface 1 * USB2.0, 1* USB3.0
    Network Interface 1*RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
    PoE Interface 802.3af/at, 16*RJ45 10 M/100 M self-adaptive Ethernet Interface
    PoE Max Power Max 30 W for single port, Max 240 W in total
    Smart Event Search YES
    Mobile App Guard Viewer
    Power Supply (without HDD) AC 100~240V, ≤ 12W
    Working Environment -10 ℃ to 50 ℃ (14 ℉ to 122 ℉),Humidity ≤ 90% RH (non-condensing)
    Weight (without HDD) ≤ 2.7Kg (6.0lb)
    Dimensions 380mm × 322mm × 53mm (15.0"×12.7"×2.1")
    Documents
    Camera Specification Sheet Download
    NVR Specification Sheet Download
    Quick Guide Download
    User Manual Download

    Dimensions & Interfaces

    box_inside_37e_54a_16ch_kit
    • 1. 16ch PoE NVR Unit *1
    • 2. 37E Water-Proof Bullet Camera * (4 or 8)
    • 3. 54A Vandal-Proof Dome Camera * (4 or 8)
    • 4. 4TB Hard Disk * 1
    • 5. Mouse * 1
    • 6. 1.5m Ethernet Cable * 1
    • 7. 18m Ethernet Cable * (4 or 8) & 30m Ethernet Cable * (4 or 8)
    • 8. NVR Power Cord * 1
    • 9. Mounting Screw Groups & Driver *(8 or 16)
    • 10. Waterproof Lid * (8 or 16)
    • 11. User Manual * 1

    Turely Plug & Play Power-ON & Connection

    Complete the installation, configuration within half an hour.

    diagram_connection_system_image_16ch_kit

    FAQs

    Find quick answers to common questions

    Product & Usage

    Does your NVR support 3rd party cameras ? What brands does it works with ?

    Yes,of course. 4COVR NVR allows the other brans' camera which support ONVIF protocol to integrate seamlessly.

    Will the camera system be hacked easily ?

    We think no, since all data are saved locally, but not absolutely. The user would modify the defult password,better to diable Upnp if no need the remote accees via internet. Meanwhile isolate the network level between the office and security system, it will prevent the hacked incident happened. Don't forget to upgrade the firmware perodically,probably it fixed the security bugs.

    Can 4COVR NVR system run without internet network?

    Yes, because the camera system belongs a solated network. it doesn't requst any available internet mandatory.

    How do I enable remote access of security camera system?

    1. Put the camera system into an internet-enable condtion and make sure it's able to aceess internet already after simple setup. 2. Download mobile app and register one cloud account. 3. Add the NVR unit into mobile app by unique ID. all done!

    How do I playback recordings?

    Stored footage on the recorder can be accessed remotely using the compatible app or on the recorder itself. Refer to your recorder's manual for playback instructions.

    Shipment & Warranty & Payment

    1. What are your payment options? And what currencies do you support?

    You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details ofPayment Policy.

    2. How much are the customs duties?

    Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.

    3. Where can you ship? How long will it take to receive my items?

    We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries. And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are from and shipped to.
    See details here Shipping & Delivery Policy.

    4. Is there an option to extend the warranty?

    Yes, we provide compatible parts and add-ons to extend the life of your system.

    5. Do you provide instruction manuals or usage guides?

    Every product comes with a detailed user manual, and digital guides are available online.

    6. How fast is shipping and delivery?

    Orders ship within 72 hours, and delivery typically takes 3-5 business days.

    7. Do you offer bulk or corporate purchasing options?

    Yes, 4COVR provides special pricing and packages for business or team orders.

    8. How can I contact customer support if I need help?

    You can reach our support team by email or phone — we’re here to assist you.
