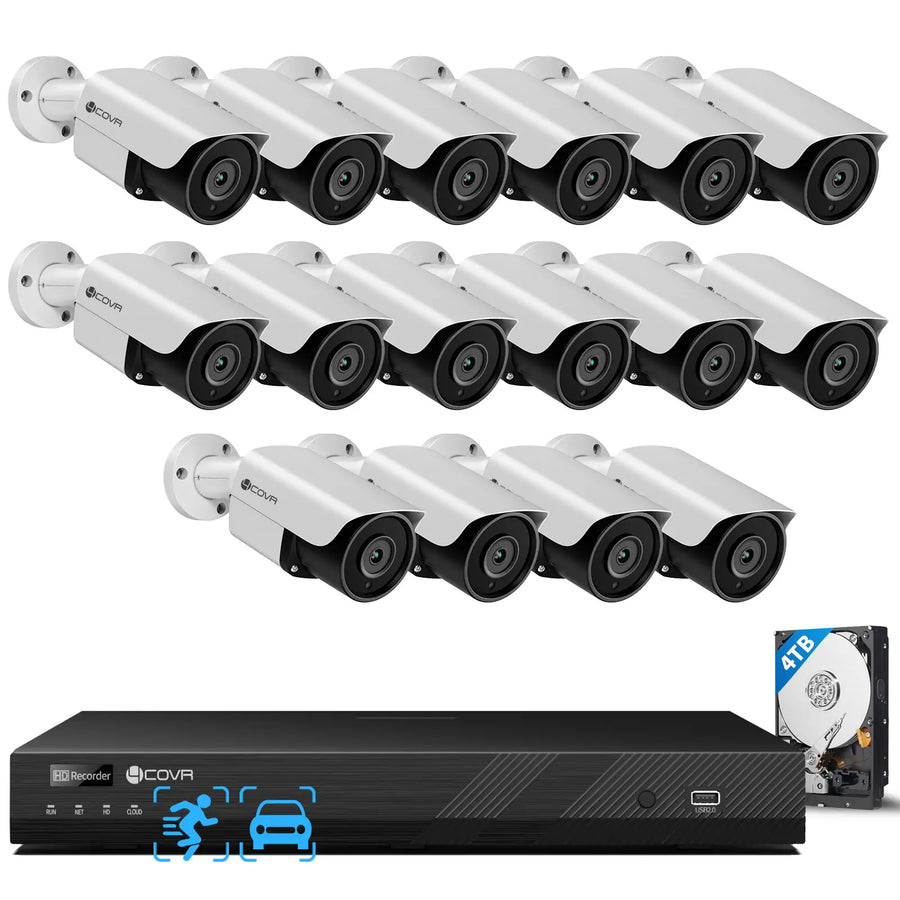

    16 Camera PoE Security System with 5MP Waterproof Bullet Camera & 4TB HDD

    * 5MP HD Imaging System
    * 30m IR Night Vision
    * 16-Port PoE NVR with 4TB HDD
    * Real-Time Event Push
    * IP67 Waterproof
    * One-Way Audio
    * GuardViewer App
    SKU: B0D9B2VLJ5
    Regular Price $1,199.99 USD
    Shipping calculated at checkout.
    Number of Cameras : 16 Cameras
    Camera Color: White

    Available Now – Fast Shipping

    You May Need
    4COVR dp03 junction box white
    Regular Price $18.99 USD
    4COVR 5mp dome type poe security camera for add on white
    Regular Price $56.99 USD
    4COVR 5mp vandal proof dome type poe security camera for add on white
    4COVR 100feet 30m cat5e ethernet network cable white
    Regular Price $19.99 USD

    Payment & Security

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa

    Warranty Policy

    🚚 3-5 Days Standard Delivery

    🛡️ 2 Years Quality Warranty

    ↩️ 30 Days Hassle-free Returns

    Crystal Clear 5MP Detailed Images

    Most systems settle for 1080p. 5MP gives you roughly double the pixel density — more detail per frame, fewer blind spots, footage that actually holds up when you zoom in to read a plate or identify a face.

    Capture around the work,Day & Night

    Built-in infrared LEDs capture clear footage up to 30m in total darkness. 24/7 recording continues whether it's noon or midnight—black-and-white video, no lag, no blind spots.

    hightlight_24_7_continuous_recording_nvr_v2

    24*7 No-Stop Recording, Keep Solid

    The system never sleeps, never pauses, never misses a frame. Your property watched around the clock, every single day.

    Explore More
    hightlight_motion_smart_ai_detection_nvr_v2

    With Smart,re-define the motion detection

    Traditional motion detection: a leaf blows, you get 47 false alarms. AI detection: knows the difference between a person, a vehicle, and a tree branch. Alerts only when it actually matters.

    hightlight_zero_monthly_fee_nvr_v2

    Zero Monthly Fees. Your Storage, Your Hands

    No monthly fees. No surprise bills. Your local storage comes pre-installed — one upfront cost, zero ongoing charges. Cloud security? Way overpriced.

    hightlight_poe_connection_nvr_v2

    PoE - The Key to simplify the security Camera system

    Without PoE: one camera needs cables for power, data, and sometimes audio — three wires, three headaches. With PoE: one Ethernet cable does it all. One. Clean install, clean result.

    Sufficient and easy-to-use features you will get right now

    black out the specific areas from original videos to protect the personal privacy

    Privacy Protection

    You don't need the most expensive system. You need one that covers the zones that matter and actually works when you need it.

    4COVR's 16 Channel Security Camera System runs on a 4K 16CH NVR with 16 built-in PoE ports — each cable carries both power and video, cameras plug in and the system recognizes them automatically. No electrician, no adapter clutter. 4TB HDD included with 2 SATA bays that expand to 20TB. All footage stays local, yours to keep, no subscription.

    16 waterproof bullet cameras handle the outdoor zones — front yard, back gate, driveway, side fence. IP67-rated housing stands up to rain, snow, dust, and temperatures from -20°C to 50°C. Smart IR night vision captures clear footage in total darkness up to 30m.

    AI human & vehicle detection tells people and vehicles apart from branches, weather, and small animals. Get alerts only when something actually matters.

    Built-in microphone on each camera captures audio at the source — footage with sound when you need it.
    Check live view or playback from anywhere using the free GuardViewer app for iOS and Android.

    Key Features

    • 4K 16CH NVR with 16 PoE Ports — Auto Plug & Play, cameras auto-recognized on connection
    • 16pcs 5MP Waterproof Bullet Cameras — IP67 weatherproof, Smart IR night vision up to 30m, for outdoor coverage
    • AI Human & Vehicle Detection — reduces false alerts from animals, branches, weather
    • Smart IR Night Vision — IR LED up to 30m, captures clear footage in total darkness
    • 4TB HDD Included, Expandable to 20TB — 2 SATA bays, H.265 compression, no monthly fee
    • Built-in Microphone on each camera — audio monitoring feeds to NVR and app
    • Real-Time Push Alerts — AI events push instant notifications to your iOS/Android phone
    • Remote Viewing & Playback — GuardViewer app and browser access, view live or playback from anywhere
    • AI Smart Playback — search recordings by event type, find footage in seconds
    • IP67 Weatherproof — outdoor rated, -20°C to 50°C, rain and dust resistant
    • 2-Year Warranty + Lifetime Technical Support

    What is for

    Built for properties that need reliable outdoor coverage without extra features. Waterproof bullet cameras for front yard, back gate, driveway, and side fence lines.

    Reliable coverage where you need it. No monthly fees.

    Camera Datasheet
    Specification Name Specification Value
    Camera Shape IP67 Waterproof Bullet
    Bracket & Installation Celling or Wall mount
    Filed of View approx 110°
    Lens 2.8mm fixed lens
    Night Vision Smart IR, Black&White,30 meters
    Video Resolution Main Stream: 30fps@5MP(2592x1944)/4MP(2560x1440)/ 3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360)
    Smart Alarm Motion,Human & Vehicle,Cross Line,Perimeter,Face Detection
    Audio Talk Built-in Mic ,No Speaker, One-way audio
    Power Input 12 VDC ± 10%, < 8W
    PoE Power IEEE 802.3af, 48V, active
    Operating Temperature -20℃-(+50)℃, 10%-90%RH
    NVR Datasheet
    Specification Name Specification Value
    Max. Channels 16CH Video Input, Max. 12MP resolution
    Max Input/Record 160Mbps/128Mbps
    Display Output 1*HDMI, 4K (3840 × 2160) 1* VGA ,1920 × 1080
    Simultaneous Playback Smart Off: 2 x 12MP/16 x 720P Smart On: 2 x 4K/ 16 x 720P
    HDD Capacity 2 SATA Interfaces, each max 10TB capacity
    Audio Input/Output 1*Input / 1*Output
    Alarm In/Output 8*Input / 2*Output
    USB Interface 1 * USB2.0, 1* USB3.0
    Network Interface 1*RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
    PoE Interface 802.3af/at, 16*RJ45 10 M/100 M self-adaptive Ethernet Interface
    PoE Max Power Max 30 W for single port, Max 240 W in total
    Smart Event Search YES
    Mobile App Guard Viewer
    Power Supply (without HDD) AC 100~240V, ≤ 12W
    Working Environment -10 ℃ to 50 ℃ (14 ℉ to 122 ℉),Humidity ≤ 90% RH (non-condensing)
    Weight (without HDD) ≤ 2.7Kg (6.0lb)
    Dimensions 380mm × 322mm × 53mm (15.0"×12.7"×2.1")
    Documents
    Camera Specification Sheet Download
    NVR Specification Sheet Download
    Quick Guide Download
    User Manual Download

    Dimensions & Interfaces

    box_inside_37e_16ch_kit
    • 1. 16ch PoE NVR Unit *1
    • 2. 37E Waterproof Bullet Camera * (16)
    • 3. 4TB Hard Disk * 1
    • 4. Mouse * 1
    • 5. 1.5m Ethernet Cable * 1
    • 6. 18m Ethernet Cable * (8) & 30m Ethernet Cable * (8)
    • 7. NVR Power Cord * 1
    • 8. Mounting Screw Groups & Driver *(16)
    • 9. Waterproof Lid * (16)
    • 10. User Manual * 1

    Plug & Play- Easy-Setup

    Complete the installation, configuration within half an hour.

    diagram_connection_system_image_16ch_kit

    Frequently Asked Questions

    Product & Usage

    Can 4COVR NVR system run without internet network?

    Yes, because the camera system belongs a solated network. it doesn't requst any available internet mandatory.

    Do I need a subscription to use 4COVR NVR system?

    No there is no hidden cost and subscription fee completely. Just buy once, all software and support services are free for the lifetime.

    How do I enable remote access of security camera system?

    1. Put the camera system into an internet-enable condtion and make sure it's able to aceess internet already after simple setup. 2. Download mobile app and register one cloud account. 3. Add the NVR unit into mobile app by unique ID. all done!

    Is there a mobile app for remote monitoring, and is it compatible with both iOS and Android?

    Yes, 4COVR offers remote access and monitoring via Guardviewer for NVR system, thatis accessible on both iOS and Android.

    Can the NVR system support simultaneous access from multiple viewer?

    Yes,if NVR supports RAID feature and the feature is enable, when one of Hard disk is damage, the NVR can recover all data after the replaced one insterted. Yes, max 128 users for remote view

    Shipment & Warranty & Payment

    1. What are your payment options? And what currencies do you support?

    We accept Visa, Mastercard, American Express, PayPal, Apple Pay and Google Pay. All paymentsare securely processed through our checkout provider. 4COVR does not store your full cardinformation.

    2. How much are the customs duties?

    Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.

    3. Where can you ship? How long will it take to receive my items?

    We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries. And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are from and shipped to.
    See details here Shipping & Delivery Policy.

    4. Is there an option to extend the warranty?

    Yes, we provide compatible parts and add-ons to extend the life of your system.

    5. Do you provide instruction manuals or usage guides?

    Every product comes with a detailed user manual, and digital guides are available online.

    6. How fast is shipping and delivery?

    Orders ship within 72 hours, and delivery typically takes 3-5 business days.

    7. Do you offer bulk or corporate purchasing options?

    Yes, 4COVR provides special pricing and packages for business or team orders.

    8. How can I contact customer support if I need help?

    You can reach our support team by email or phone — we’re here to assist you.
