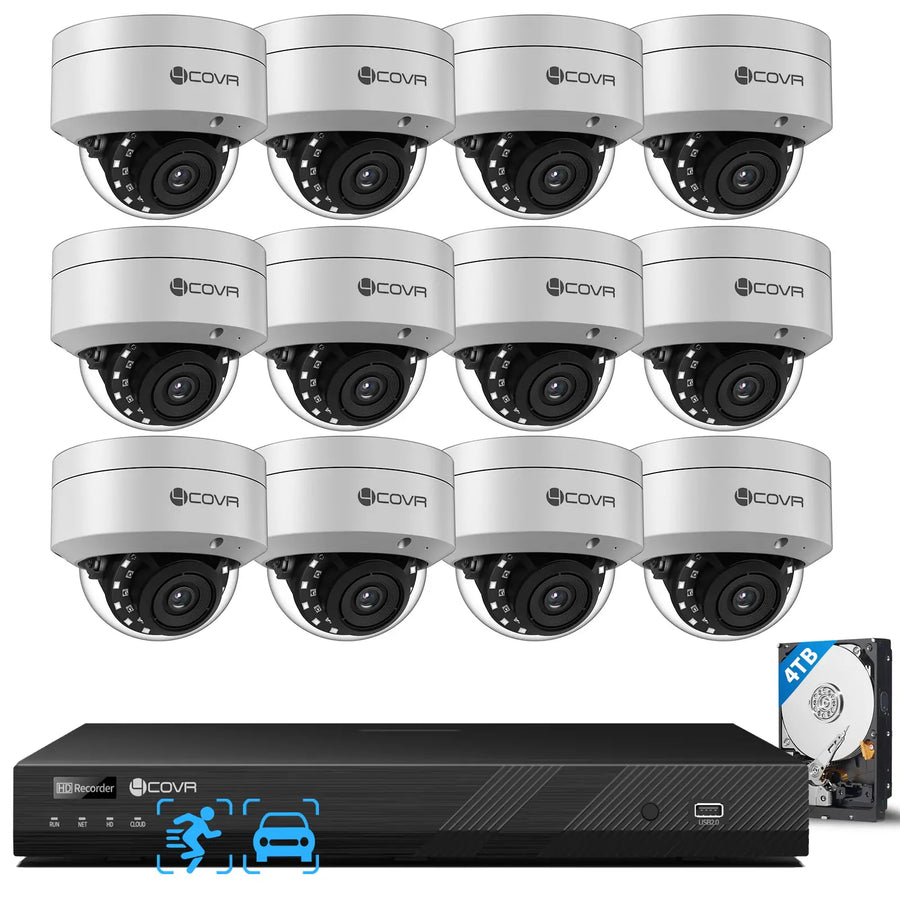

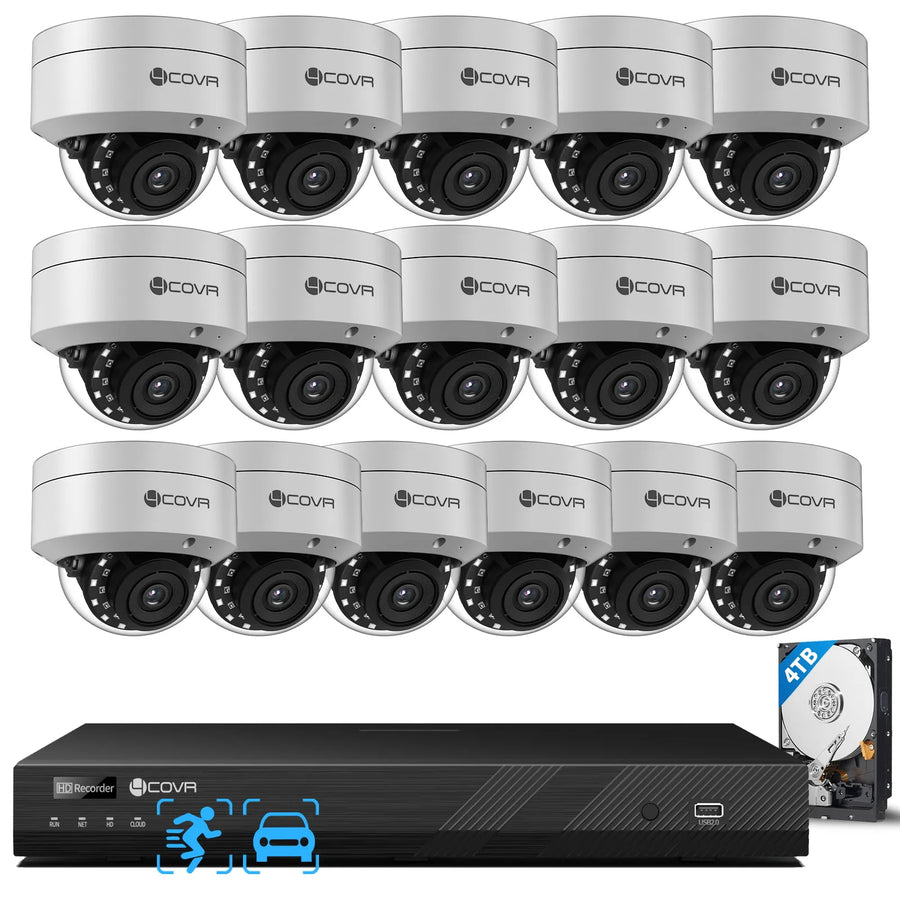

    16 Channel PoE NVR System | IK10 12MP Dome, 16CH 4K NVR

    * IK10 Vandal-Proof Dome
    * Built-in 16-PoE port, Auto Plug&Play
    * 4TB HDD installed,20TB extendable
    * 12MP Ultra Clear Recording
    * No Subscription Fee
    SKU: B0DZN5QWLQ
    Regular Price $1,399.99 USD
    Shipping calculated at checkout.
    Camera Quantity: 12 Pieces
    Camera Color: Whilte

    Hurry up! Only 4 left

    Estimated Delivery: Jun 10 - Jun 14
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    Designed for Anti-temper,without any worry

    Regular cameras crack under a single solid hit. IK10-rated housing is engineered to resist it — that's 10 joules of impact energy, the kind of beating that would destroy standard surveillance gear. Your camera stays mounted, stays recording.

    Clear & Stable Night Vision

    Even in total darkness, infrared LEDs illuminate the scene so you get crisp, detailed footage without any ambient light. 24/7 protection, day or night — no compromises on clarity when it matters most.

    hightlight_24_7_continuous_recording_nvr

    Always-On System, Every Moment is Recorded

    Most cameras record on motion — up to 5 minutes per event, then standby. 4COVR records 24/7, all day, every day. 86,400 seconds per day. Not 300. Every one of them covered.

    hightlight_h265_h264_comparison_nvr

    Advanced Video Coding named "H.265"

    H.264 was built for 1080p. H.265 handles 4K and 12MP without eating your storage alive. Same footage, same quality, 40-50% smaller files — meaning your 20TB lasts weeks longer, not days.

    hightlight_expendable_hdd_capacity_nvr

    Not Only One, Two Actually.

    Two bays. 10TB each. 20TB total. Weeks of 16-channel footage — all stored locally, no subscription.

    hightlight_zero_monthly_fee_nvr

    Loudly Say “No” to Monthly Fee

    Cloud storage sounds convenient — until you see the monthly bill. 4COVR keeps everything local: one upfront cost, zero ongoing fees. That subscription brand charging $9.99/month? They're making more off you over time than the hardware itself.

    Sufficient and easy-to-use features you will get right now

    black out the specific areas from original videos to protect the personal privacy

    Privacy Protection

    The 16 channel security camera system handles properties that need serious tamper resistance — indoor ceilings, warehouse corners, hallways, any spot a camera becomes a target.

    The 4COVR dome cameras carry an IK10 rating. That means impact-rated housing that can take a hit and keep recording. Paired with the 4K 16CH NVR and sixteen 12MP dome cameras, the system captures fine detail across all 16 channels simultaneously. One cable per camera via PoE handles power and data. No electrician needed, no monthly fees. The NVR comes with 4TB of local storage built in. Need more? Two SATA bays let you expand to 2×10TB — 20TB total when full. Your footage stays yours.

    Human and vehicle detection triggers real-time push alerts to your phone when activity is detected. Review live feed or playback from anywhere using the free mobile app. Fixed 2.8mm lens covers wide indoor areas — hallways, entranceways, open floor plans.

    Built for the spaces cameras get abused. The aluminum alloy housing shrugs off tampering and keeps running. IP67 and IK10 dual-rated for wet conditions and physical impact. Operating range from -30°C to 60°C handles cold storage and heated commercial spaces alike.


    Key Features

    • 16 Channel 4K NVR with 16 PoE Ports — Auto Plug & Play, cameras auto-recognized on connection
    • 16pcs 12MP IK10 Vandal-Proof Dome Cameras — Impact-rated housing, IP67 weatherproof
    • Up to 2×10TB Storage, Expandable — 4TB included, 2 SATA bays support up to 20TB total, no monthly fee
    • AI Human & Vehicle Detection — Reduces false alerts from animals, branches, and weather
    • 4K Ultra HD Recording — 16 channel 24/7 continuous local recording at 12MP resolution
    • Real-Time Push Alerts — AI events push instant notifications to your iOS/Android phone
    • Remote Viewing & Playback — Free mobile app and browser access, view live or playback from anywhere
    • AI Smart Playback — Search recordings by event type, find footage in seconds
    • Built-in Microphone — Audio monitoring on each dome camera, feeds to NVR and app
    • IK10 + IP67 Dual Rating — IK10 impact-rated and IP67 weatherproof, -30°C to 60°C operating range
    • Smart IR Night Vision — IR LED up to 30m, 110° wide-angle fixed lens for indoor coverage
    • 2-Year Warranty + Lifetime Technical Support — Backed by our commitment to your system

    What is for

    Designed for commercial indoor environments — offices, retail floors, warehouses, cold storage — where cameras are exposed to physical tampering and require IK10-rated protection.

    Ceiling-mounted cameras take abuse. This 16 channel system is built for exactly that — IK10-rated domes, no subscription, ready to deploy.
    Camera Datasheet
    Specification Name Specification Value
    Camera Shape Vandal-proof Dome
    Bracket & Installation Celling or Wall mount
    Filed of View approx 110°
    Lens 2.8mm fixed lens
    Night Vision Smart IR, Black&White,30 meters
    Video Resolution Main Stream: 15fps@12MP(3840x3104)(default)/3840x2512/8MP(3840x2160),30fps@6MP(3072x1728)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default25fps)/(720x480)/VGA(640x480)/QVGA(640x360) (*Note:MJPEG max 1080P)
    Smart Alarm Motion,Human & Vehicle,Cross Line,Perimeter,Face Detection
    Audio Talk Built-in Mic ,No Speaker, One-way audio
    Power Input 12 VDC ± 10%, < 8W
    PoE Power IEEE 802.3af, 48V, active
    Operating Temperature -20℃-(+50)℃, 10%-90%RH
    NVR Datasheet
    Specification Name Specification Value
    Max. Channels 16CH Video Input, Max. 12MP resolution
    Max Input/Record 160Mbps/128Mbps
    Display Output 1*HDMI, 4K (3840 × 2160) 1* VGA ,1920 × 1080
    Simultaneous Playback Smart Off: 2 x 12MP/16 x 720P Smart On: 2 x 4K/ 16 x 720P
    HDD Capacity 2 SATA Interfaces, each max 10TB capacity
    Audio Input/Output 1*Input / 1*Output
    Alarm In/Output 8*Input / 2*Output
    USB Interface 1 * USB2.0, 1* USB3.0
    Network Interface 1*RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
    PoE Interface 802.3af/at, 16*RJ45 10 M/100 M self-adaptive Ethernet Interface
    PoE Max Power Max 30 W for single port, Max 240 W in total
    Smart Event Search YES
    Mobile App Guard Viewer
    Power Supply (without HDD) AC 100~240V, ≤ 12W
    Working Environment Environment -10 ℃ to 50 ℃ (14 ℉ to 122 ℉),Humidity ≤ 90% RH (non-condensing)
    Weight (without HDD) ≤ 2.7Kg (6.0lb)
    Dimensions 380mm × 322mm × 53mm (15.0"×12.7"×2.1")
    Documents
    Camera Specification Sheet Download
    NVR Specification Sheet Download
    Quick Guide Download
    User Manual Download

    Dimensions & Interfaces

    box_inside_54a_16ch_kit
    • 1. 16ch PoE NVR Unit *1
    • 2. 37Y Dual-Light Bullet Camera * (12 or 16)
    • 3. 4TB Hard Disk * 1
    • 4. Mouse * 1
    • 5. 1.5m Ethernet Cable * 1
    • 6. 18m Ethernet Cable * (12) or 18m Ethernet Cable * (8) & 30m Ethernet Cable * (8)
    • 7. NVR Power Cord * 1
    • 8. Mounting Screw Groups & Driver *(12 or 16)
    • 9. Waterproof Lid * (12 or 16)
    • 10. User Manual * 1

    Turely Plug & Play Power-ON & Connection

    Complete the installation, configuration within half an hour.

    diagram_connection_system_image_16ch_kit

    FAQs

    Find quick answers to common questions

    Product & Usage

    Does this NVR system support 24/7 recording?

    Yes, 4COVR Camera System supports 24/7 recording,Not only that, it support event-triggered recording to save critical footage. all recording will be overwritten if the storage is full.

    Do I need a subscription to use 4COVR NVR system?

    No there is no hidden cost and subscription fee completely. Just buy once, all software and support services are free for the lifetime.

    How many PoE cameras can I add to this system?

    it's up to the NVR ability, normally it's 8/16/32/64 channles max, depending on the models. Please see the datasheet to find out

    How to Connect 4COVR PoE Cameras to the PoE NVRs

    in fact if the NVR has built-in PoE port, just plug the 4COVR cameras into ,it will auto detect them and add into the device list, the cameras' image will be shown at once. but if there are no PoE port or it's a 3rd party cameras , please enable to power on the camera correctly, then put NVR and Cameras into a same local network. Login the NVR unit to search the known devices. genrally all cameras will be found and enable to be added manually.

    How can i know the Hard disk capacity that i need in my 4COVR system ?

    You can use 4COVR Calculator to get the recommendation, according to the camera numbers, resolutions and retention days.

    Shipment & Warranty & Payment

    1. What are your payment options? And what currencies do you support?

    You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details ofPayment Policy.

    2. How much are the customs duties?

    Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.

    3. Where can you ship? How long will it take to receive my items?

    We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries. And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are from and shipped to.
    See details here Shipping & Delivery Policy.

    4. Is there an option to extend the warranty?

    Yes, we provide compatible parts and add-ons to extend the life of your system.

    5. Do you provide instruction manuals or usage guides?

    Every product comes with a detailed user manual, and digital guides are available online.

    6. How fast is shipping and delivery?

    Orders ship within 72 hours, and delivery typically takes 3-5 business days.

    7. Do you offer bulk or corporate purchasing options?

    Yes, 4COVR provides special pricing and packages for business or team orders.

    8. How can I contact customer support if I need help?

    You can reach our support team by email or phone — we’re here to assist you.
