    16 Channel Security Camera System| 12MP Ultra HD Bullet, AI Detection

    * 16-Port PoE NVR with 4TB HDD
    * 12MP Dual Light Bullet Camera
    * Color Night Vision
    * Active Deterrence
    * IP67 Weather-Resistance
    * GuardViewer Mobile App
    SKU: B0F2YKF33N
    Regular Price $1,699.99 USD
    Shipping calculated at checkout.
    Camera Quantity: 16 Pieces
    Camera Color: White

    Hurry up! Only 3 left

    Estimated Delivery: Jun 10 - Jun 14
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    12MP-More Valuable Quality

    4K is good. 12MP is better. At 4000 × 3000 pixels, you get 50% more detail than 8MP 4K — see facial features clearly, read text on signs at distance, zoom in without losing sharpness. When the footage matters, more pixels win.

    Active Deterrence,Set your own rules

    Most cameras just record what happened. 4COVR Active Deterrence makes sure something happens. Warm light floods the area, siren fires — the intruder knows they're seen. Fear of being caught is the best deterrent there is.

    hightlight_24_7_continuous_recording_nvr

    Believe it, Keep 24*& Recording

    Break-in at 3 AM. Motion camera missed the entry — it was triggered after they were already inside. 24/7 recording would have caught the whole thing. Don't let gaps in your coverage become gaps in your evidence.

    hightlight_motion_smart_ai_detection_nvr

    Smart is the Key to eliminate the false motion detecion

    AI-powered smart motion detection distinguishes people and vehicles from background movement — wind, rain, tree branches, pets. Only relevant events trigger alerts, cutting noise so you see what actually matters.

    hightlight_two_way_audio_nvr

    Launch Remote Talk anytime/anywhere

    Built-in microphone and speaker enable two-way audio — talk to visitors, warn off intruders, or check in with family from anywhere. Real-time communication through the app, no matter where you are.

    hightlight_expendable_hdd_capacity_nvr

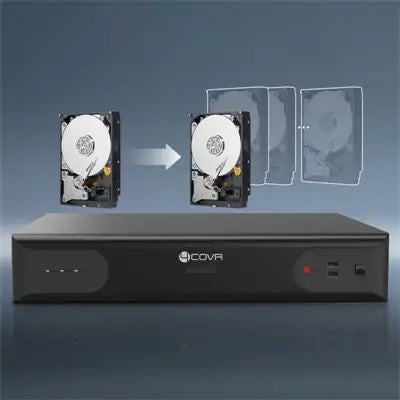

    Extendable Hard Disk Space to 20TB Max.

    Dual SATA architecture means you start with pre-installed drives and expand as needed — pop in a 10TB drive today, upgrade to 12TB or 14TB drives when prices drop. Your storage grows with your needs, not against them.

    Sufficient and easy-to-use features you will get right now

    black out the specific areas from original videos to protect the personal privacy

    Privacy Protection

    Most security cameras just sit there. This one watches back — 12MP ultra HD across 16 channels.

    The 16 channel security camera system covers your entire property from the front gate to the back fence. Twelve-megapixel resolution means you can pull a plate number from 50 meters out, or catch a face without squinting. The 4K 16CH NVR runs everything around the clock — 24/7 recording, locally stored, no monthly fees ever.

    One cable per camera handles both power and data. Plug in, the NVR finds the cameras automatically. No electrician, no tangled adapter cords. IP67-rated outdoor housing shrugs off rain, snow, and temperature swings from -20°C to 50°C (-4°F to 122°F).

    When someone steps onto your property, the AI knows the difference between a person and a wind-blown bag. Human and vehicle detection cuts the noise so you're not alerted every time a branch moves. The active deterrence kicks in — warm light and a siren that actually makes someone think twice.


    Key Features

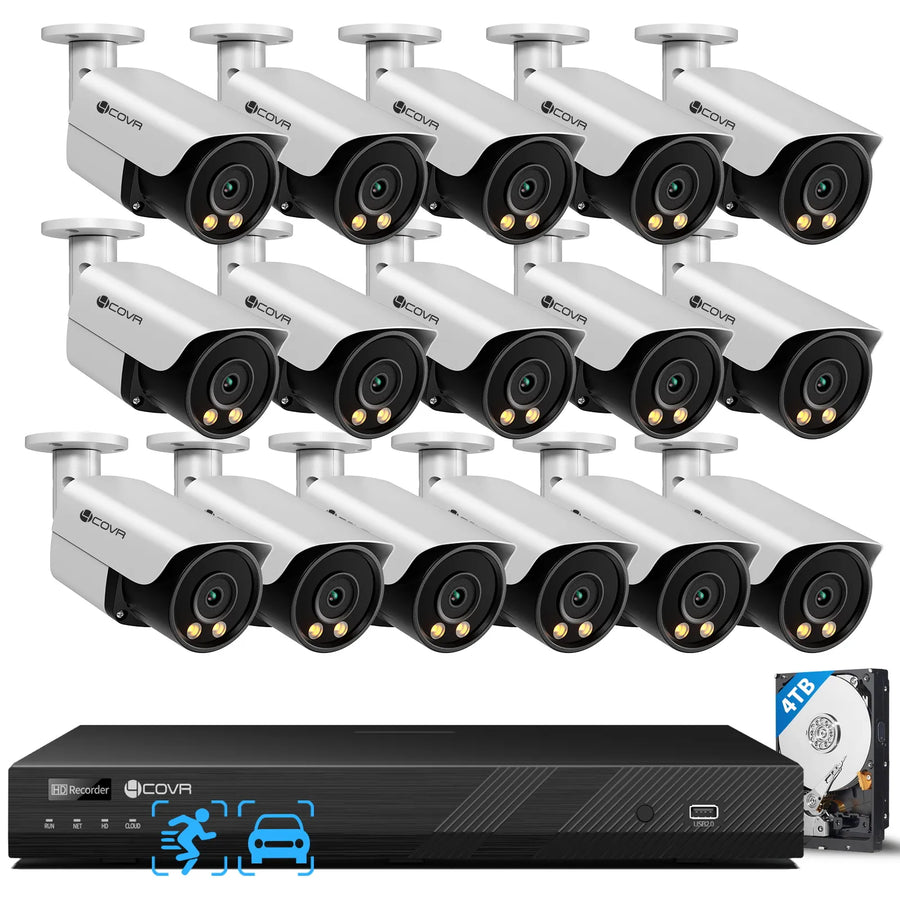

    • 16 Channel 4K NVR with 16 PoE Ports — Auto Plug & Play, cameras auto-recognized on connection 16pcs 12MP PoE Bullet Cameras — 12MP ultra HD, long-range fixed lens for perimeter coverage
    • Up to 2×10TB Storage, Expandable — 4TB included, 2 SATA bays support up to 20TB total, no monthly fee
    • AI Human & Vehicle Detection — Reduces false alerts from animals, branches, and weather
    • Active Deterrence: Warm Light + Siren — Instantly triggers on detection to scare off intruders IP67 Weatherproof — Outdoor rated, -20°C to 50°C (-4°F to 122°F)
    • Dual Light Color Night Vision — Warm light full-color night vision up to 15m, IR extends to 30m
    •  24/7 Local Recording, No Monthly Fee — All footage stored locally, yours to control
    • Two-Way Audio — Built-in mic and speaker on each camera, talk through the app
    • Real-Time Push Alerts — AI events push instant notifications to your iOS/Android phone

    What is for

    Designed for retail stores, offices, warehouses, and properties that need reliable multi-point coverage with AI-powered detection and active deterrence — no subscription required.

    This 16 channel security system ships as a complete kit. Tell us your property layout — we'll make sure it covers everything.



    Camera Datasheet
    Specification Name Specification Value
    Camera Shape Waterproof Bullet
    Bracket & Installation Celling and Wall- Mount
    Filed of View approx 110°
    Lens 2.8mm fixed lens
    Night Vision Smart Dual Light distance 15m. Spotlight turns ON when a target appears to record in full-color night vision.
    Video Resolution Main Stream: 15fps@12MP(3840x3104)(default)/3840x2512/8MP(3840x2160),30fps@6MP(3072x1728)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default25fps)/(720x480)/VGA(640x480)/QVGA(640x360) (*Note:MJPEG max 1080P)
    Smart Alarm Motion,Human & Vehicle,Cross Line,Perimeter,Face Detection
    Audio Talk Two-Way audio
    Power Input 12 VDC ± 10%, < 8W
    PoE Power IEEE 802.3af, 48V, active
    Operating Temperature -20℃-(+50)℃, 10%-90%RH
    NVR Datasheet
    Specification Name Specification Value
    Max. Channels 16CH Video Input, Max. 12MP resolution
    Max Input/Record 160Mbps/128Mbps
    Display Output 1*HDMI, 4K (3840 × 2160) 1* VGA ,1920 × 1080
    Simultaneous Playback Smart Off: 2 x 12MP/16 x 720P Smart On: 2 x 4K/ 16 x 720P
    HDD Capacity 2 SATA Interfaces, each max 10TB capacity
    Audio Input/Output 1*Input / 1*Output
    Alarm In/Output 8*Input / 2*Output
    USB Interface 1 * USB2.0, 1* USB3.0
    Network Interface 1*RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
    PoE Interface 802.3af/at, 16*RJ45 10 M/100 M self-adaptive Ethernet Interface
    PoE Max Power Max 30 W for single port, Max 240 W in total
    Smart Event Search YES
    Mobile App Guard Viewer
    Power Supply (without HDD) AC 100~240V, ≤ 12W
    Working Environment Environment -10 ℃ to 50 ℃ (14 ℉ to 122 ℉),Humidity ≤ 90% RH (non-condensing)
    Weight (without HDD) ≤ 2.7Kg (6.0lb)
    Dimensions 380mm × 322mm × 53mm (15.0"×12.7"×2.1")
    Documents
    Camera Specification Sheet Download
    NVR Specification Sheet Download
    Quick Guide Download
    User Manual Download

    Dimensions & Interfaces

    box_inside_37Y_16ch_kit
    • 1. 16ch PoE NVR Unit *1
    • 2. 37Y Dual-Light Bullet Camera * (12 or 16)
    • 3. 4TB Hard Disk * 1
    • 4. Mouse * 1
    • 5. 1.5m Ethernet Cable * 1
    • 6. 18m Ethernet Cable * (12) or 18m Ethernet Cable * (8) & 30m Ethernet Cable * (8)
    • 7. NVR Power Cord * 1
    • 8. Mounting Screw Groups & Driver *(12 or 16)
    • 9. Waterproof Lid * (12 or 16)
    • 10. User Manual * 1

    Turely Plug & Play Power-ON & Connection

    Complete the installation, configuration within half an hour.

    diagram_connection_system_image_16ch_kit

    FAQs

    Find quick answers to common questions

    Product & Usage

    Will the camera system be hacked easily ?

    We think no, since all data are saved locally, but not absolutely. The user would modify the defult password,better to diable Upnp if no need the remote accees via internet. Meanwhile isolate the network level between the office and security system, it will prevent the hacked incident happened. Don't forget to upgrade the firmware perodically,probably it fixed the security bugs.

    Can 4COVR NVR system run without internet network?

    Yes, because the camera system belongs a solated network. it doesn't requst any available internet mandatory.

    How do I enable remote access of security camera system?

    1. Put the camera system into an internet-enable condtion and make sure it's able to aceess internet already after simple setup. 2. Download mobile app and register one cloud account. 3. Add the NVR unit into mobile app by unique ID. all done!

    Are the recordings still safe if NVR or HDD is broken?

    Yes,if NVR supports RAID feature and the feature is enable, when one of Hard disk is damage, the NVR can recover all data after the replaced one insterted.

    How do I playback recordings?

    Stored footage on the recorder can be accessed remotely using the compatible app or on the recorder itself. Refer to your recorder's manual for playback instructions.

    Shipment & Warranty & Payment

    1. What are your payment options? And what currencies do you support?

    You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details ofPayment Policy.

    2. How much are the customs duties?

    Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.

    3. Where can you ship? How long will it take to receive my items?

    We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries. And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are from and shipped to.
    See details here Shipping & Delivery Policy.

    4. Is there an option to extend the warranty?

    Yes, we provide compatible parts and add-ons to extend the life of your system.

    5. Do you provide instruction manuals or usage guides?

    Every product comes with a detailed user manual, and digital guides are available online.

    6. How fast is shipping and delivery?

    Orders ship within 72 hours, and delivery typically takes 3-5 business days.

    7. Do you offer bulk or corporate purchasing options?

    Yes, 4COVR provides special pricing and packages for business or team orders.

    8. How can I contact customer support if I need help?

    You can reach our support team by email or phone — we’re here to assist you.
