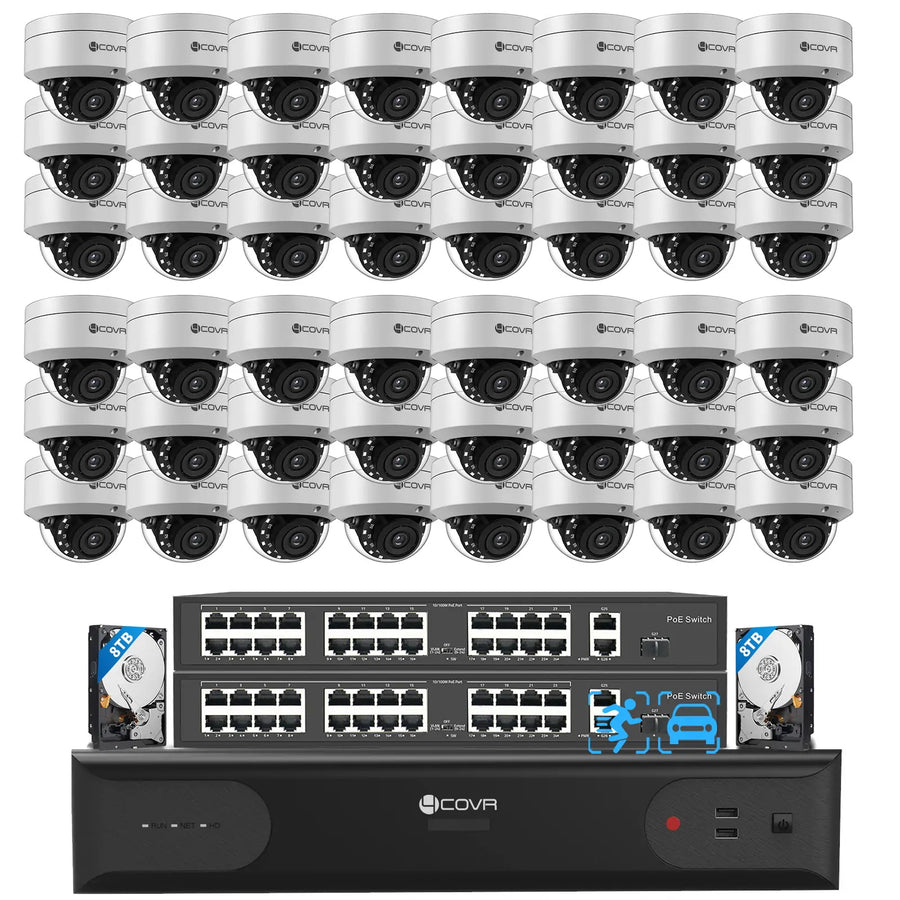

64 Channel 4K NVR System | for Business, 5MP Dome, 192TB, 2×PoE Switch

Vendor: 4COVR-Security Camera System Supplier Type: Kits

* 5MP IK10 Vandal-Proof Dome
* 64CH NVR with 2*8TB HDD installed
* 8*SATA, RAID Supported
* 2*24 Port PoE Switch
* Perimeter Protection
* Smart AI Search
* 2U Rack Mount

SKU: B0D97R1FTH

$4,699.99 USD

Shipping calculated at checkout.

Camera Quantity: 48 Pieces

48 Pieces

Camera Color: White

White

Out of Stock

Estimated Delivery: Jun 10 - Jun 14

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

5MP Wins 2MP (1080P) Absolutely
Engineered for Commercial Applications
Designed For IK10 Rated

The 64 channel NVR runs 24/7 across warehouses, retail chains, and multi-location operations. 192TB local storage, RAID 1/5 redundancy, AI detection that only alerts on people and vehicles. No subscription. Built to handle enterprise-scale security cameras with zero compromise.

Perimeter Security,Keep Your Property Safe

Stops threats before they reach your door. Set detection zones around fences, driveways, and entry points — get alerted the moment someone crosses the line, not after they've already gotten in

Big Storage Pool for superb Retention

Eight SATA bays, up to 24TB per drive — that's 192TB of raw storage capacity. Configurable RAID arrays protect your footage against drive failure, so the system keeps recording even when a hard drive gives out.

Data Security,that is the most critical thing

All footage stored locally on your NVR — not on someone else's cloud server. Your data never leaves your premises. No internet dependency, no third-party access, complete privacy.

Professional Installation, Less maintenance

Standard 2U rack-mount form factor fits most server enclosures and IT racks. Built for 24/7 commercial deployment — reliable, space-efficient, and ready for professional surveillance setups.

Recently viewed

4COVR PoE 64 Channel Security Camera System, Human Vehicle Detection, 48Pcs IK10 Vandal-Proof 5MP Commercial Dome IP Camera IP67 with Mic, 8MP NVR 16TB HDD, 24/7 Business Surveillance,including 2* 27-Port commercial PoE Switch, LY54AX5M6448 / LY54AB5M6448

Camera Datasheet

Specification Name	Specification Value
Camera Shape	Vandal-proof Dome
Bracket & Installation	Celling or Wall mount
Filed of View	approx 110°
Lens	2.8mm fixed lens
Night Vision	Smart IR, Black&White,30 meters
Video Resolution	Main Stream: 30fps@5MP(2592x1944)/4MP(2560x1440)/ 3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360)
Smart Alarm	Motion,Human & Vehicle,Cross Line,Perimeter,Face Detection
Audio Talk	Built-in Mic ,No Speaker, One-way audio
Power Input	12 VDC ± 10%, < 8W
PoE Power	IEEE 802.3af, 48V, active
Operating Temperature	-20℃-(+50)℃, 10%-90%RH

NVR Datasheet

Specification Name	Specification Value
Max. Channels	64CH Video Input, Max. 16MP resolution
Max Input/Record	320Mbps/160Mbps
Display Output
Simultaneous Playback	2 x16MP / 64 x D1
HDD Capacity	8 SATA Interfaces, each max 24TB capacity
RAID Disk	RAID 1,5
Audio Input/Output	1Input / 1Output
Alarm In/Output	16Input / 4Output
USB Interface	2 * USB2.0, 1* USB3.0
Network Interface	2*RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
PoE Interface	N/A
PoE Max Power	N/A
Smart Event Search	Yes
Software & App	GuardStation for Mac & Windows, Guard Viewer For iOS & Android
Power Supply (without HDD)	AC 100~240V ≤ 25W
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Weight (without HDD)	442mm × 426mm × 89mm (17.4" × 16.8" × 3.5")
Dimensions	442mm × 426mm × 89mm (17.4" × 16.8" × 3.5")
Warranty	2 Years Quality Warranty

Documents

Camera Specification Sheet Download

NVR Specification Sheet Download

Quick Guide Download

User Manual Download

Dimensions & Interfaces

WHAT IN THE BOX ~

Turely Plug & Play Power-ON & Connection

Complete the installation, configuration within half an hour.
