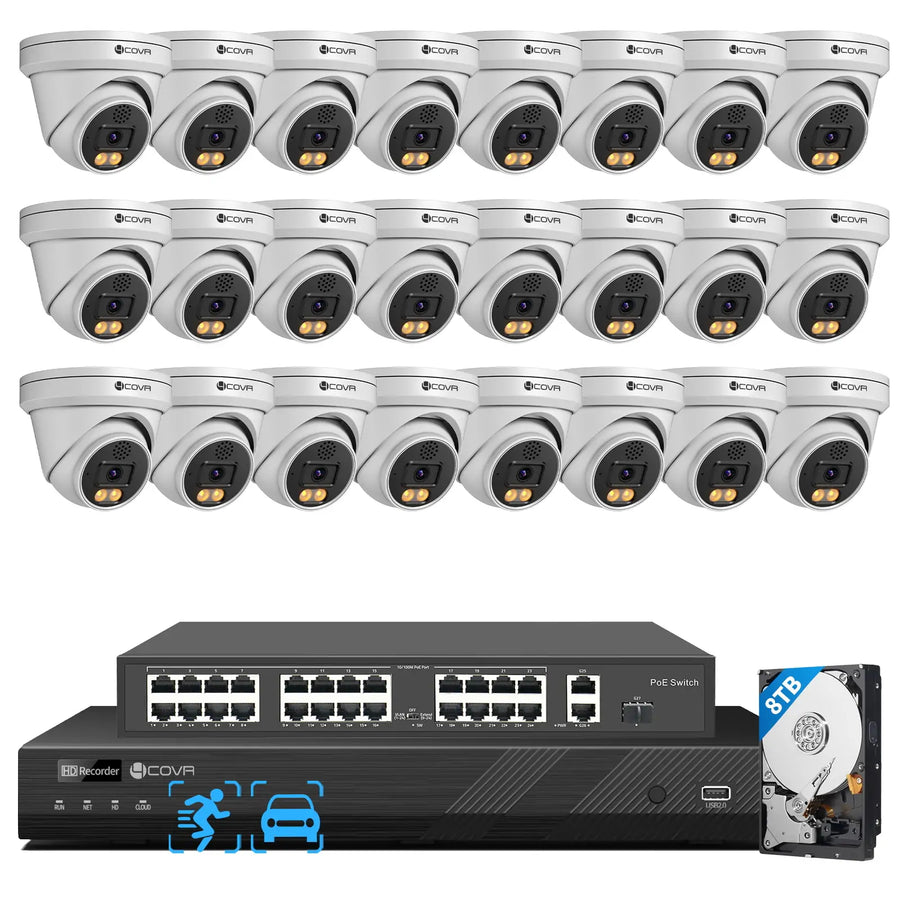

    8MP 32 Channel PoE Camera System | Active Deterrence, Color Night Vision

    * 8MP UHD & Color Night Vision
    * 32CH NVR with 8TB HDD,20TB extendable
    * 24-Port POE Switch Included
    * Active Deterrence
    * No Subscription Fee
    SKU: B0D9GZV6C2
    Regular Price $2,569.99 USD
    Shipping calculated at checkout.
    Camera Quantity: 24 Pieces
    Camera Color: White

    Out of Stock

    Estimated Delivery: Jun 10 - Jun 14
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    Color night vision changes what you see after dark. Facial features, vehicle color, clothing — full-color footage in low light conditions where traditional IR cameras capture only black and white silhouettes. See who was there, not just that something moved.

    • specific_feature__8MP_image_warehouse_panoramic specific_feature__8MP_image_warehouse_panoramic_mobile
    • image_compare_dual_light_vision_backyard image_compare_dual_light_vision_backyard_mobile
    • specific_feature_multiple_scenarios_32ch_nvr specific_feature_multiple_scenarios_32ch_nvr_mobile
    hightlight_active_deterrence_nvr

    Actively Responds, Dn't Wait Anymore

    Active deterrence shifts your security from passive recording to active prevention. AI-powered detection identifies real threats, and warm light plus siren respond immediately — deterring trespassers before they escalate to theft or damage. The difference between catching an incident and stopping one.

    hightlight_24_7_continuous_recording_nvr

    No-Stop Recording by 24/7

    24/7 continuous recording captures every moment — not just what triggers the motion detection. Incidents do not announce themselves, and the person who left your property may be the key to solving what happened. Continuous coverage, continuous evidence.

    hightlight_two_way_audio_nvr

    Reach the site at anytime/anywhere

    Two-way audio lets you talk directly through the camera — warn off trespassers from your phone in real time, give instructions to delivery staff, or check in on your property without being on-site. Communication that works both ways.

    hightlight_zero_monthly_fee_nvr

    Zero Monthly Fee, Save your Money

    No monthly fees, no cloud dependency, no third-party control of your footage. Local storage means your data stays in your hands — one upfront purchase, recorded and accessed on your own terms, forever.

    Recently viewed

    Most security cameras just record — they wait until something happens and then you watch it later. This 32 channel security camera system fights back. Active deterrence cameras trigger warm light and siren the moment a person or vehicle is detected, stopping incidents before they escalate.

    The 4COVR 32CH AI NVR runs AI detection across all 32 channels simultaneously — no subscription fees, no cloud dependency. Record at 8MP per channel in H.265 so you have usable evidence: faces, clothing color, license plates. When warm light and siren fire, the built-in speaker lets you talk directly to whoever is on your property — from your phone, in real time.

    8MP active deterrence turret cameras cover entries, parking lots, and loading areas. Dual Light technology means full-color night vision up to 15m — see in color when it matters, not just grainy black-and-white. IP67 weatherproofing handles -20°C to 50°C so these cameras work year-round.

    The bundled 24-port gigabit PoE switch powers all cameras over a single cable run. 24×30W PoE ports plus one 60W ultra PoE port handle high-wattage devices. VLAN mode locks down port isolation, Extend mode pushes PoE to 250m for perimeter fence runs.

    Free GuardViewer mobile app (iOS/Android) and browser access put live view and playback in your pocket. AI smart playback searches footage by event type so you find what you need in seconds. Two SATA bays ship with 8TB HDD pre-installed and expand to 2×10TB (20TB total) — no cloud, no monthly fees.

    Key Features
    • 32 Channel 4K NVR — Supports 32 IP cameras, H.265 recording up to 12MP per channel, no monthly fees
    • 8MP Active Deterrence Turret Cameras — Warm light + siren triggers on AI detection, two-way audio, 110° wide-angle
    • Dual Light Color Night Vision — Full-color night vision up to 15m + IR 30m B&W, warm light activates on detection
    • Active Deterrence: Warm Light + Siren — Instantly triggers on AI detection, built-in speaker for two-way talk
    • 24-Port Gigabit PoE Switch — 24×30W PoE + 1×60W ultra PoE port, 290W total budget, VLAN/Extend modes
    • Up to 2×10TB Storage, Expandable — 8TB HDD included, 2 SATA bays support up to 20TB total
    • AI Human & Vehicle Detection — Reduces false alerts, perimeter protection on all 32 channels
    • Real-Time Push Alerts — Instant mobile notifications on AI detection events
    • Remote Viewing & Playback — GuardStation PC softwrae & GuardViewer app for iOS/Android, live view and playback anywhere
    • AI Smart Playback — Search recordings by event type, find footage in seconds
    • ONVIF Compliant — Works with any ONVIF IP camera, future-proof system
    • 2-Year Warranty + Lifetime Technical Support — Backed by our commitment to your system
    What is for

    Retail stores, commercial properties, and multi-building facilities running 17-32 camera channels that need active deterrence at entries, parking lots, and loading docks. For operators who want to stop incidents in real time, not just review footage after the fact.



    Camera Datasheet
    Specification Name Specification Value
    Camera Shape Waterproof Turret
    Bracket & Installation Celling and Wall- Mount
    Filed of View approx 110°
    Lens 2.8mm fixed lens
    Night Vision Smart Dual Light distance 15m. Spotlight turns ON when a target appears to record in full-color night vision
    Video Resolution Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/ 4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360)
    Smart Alarm Motion,Human & Vehicle,Cross Line,Perimeter,Face Detection
    Audio Talk Two-Way audio
    Power Input 12 VDC ± 10%, < 8W
    PoE Power IEEE 802.3af, 48V, active
    Operating Temperature -20℃-(+50)℃, 10%-90%RH
    NVR Datasheet
    Specification Name Specification Value
    Max. Channels 32CH Video Input, Max. 12MP resolution
    Max Input/Record 160Mbps/128Mbps
    Display Output 1*HDMI, 4K (3840 × 2160) 1* VGA ,1920 × 1080
    Simultaneous Playback Smart Off: 2 x 12MP/32 x D1 Smart On: 2 x 4K/ 32 x D1
    HDD Capacity 2 SATA Interfaces, each max 10TB capacity
    RAID Disk N/A
    Audio Input/Output 1*Input / 1*Output
    Alarm In/Output N/A
    USB Interface 2 * USB2.0, 1* USB3.0
    Network Interface 2*RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
    PoE Interface N/A
    PoE Max Power N/A
    Smart Event Search Yes
    Software & App GuardStation for Mac & Windows, Guard Viewer For iOS & Android
    Power Supply (without HDD) DC 12 V/5 A,≤ 12W
    Working Environment -10 ℃ to 50 ℃ (14 ℉ to 122 ℉),Humidity ≤ 90% RH (non-condensing)
    Weight (without HDD) ≤ 2Kg (4.4lb)
    Dimensions 380mm × 315mm × 53mm (15.0"×12.4"×2.1")
    Warranty 2 Years Quality Warranty
    Documents
    Camera Specification Sheet Download
    NVR Specification Sheet Download
    Quick Guide Download
    User Manual Download

    Dimensions & Interfaces

    box_inside_97k_32ch_kit
    • 1. 32ch Commercial NVR Unit *1
    • 2. 24-Port PoE Switch * 1 (Power cord included)
    • 3. 97K Waterproof Turret Camera * (24)
    • 4. 8TB Hard Disk * 1
    • 5. Mouse * 1
    • 6. 1.5m Ethernet Cable * 1
    • 7. NVR Power Adapter * 1
    • 8. Mounting Screw Groups & Driver * (24)
    • 9. Waterproof Lid * (24)
    • 10. User Manual * 1

    Turely Plug & Play Power-ON & Connection

    Complete the installation, configuration within half an hour.

    diagram_connection_system_image_32ch_kit

    FAQs

    Find quick answers to common questions

    Product & Usage

    Does your NVR support 3rd party cameras ? What brands does it works with ?

    Yes,of course. 4COVR NVR allows the other brans' camera which support ONVIF protocol to integrate seamlessly.

    Do I need a subscription to use 4COVR NVR system?

    No there is no hidden cost and subscription fee completely. Just buy once, all software and support services are free for the lifetime.

    Can 4COVR NVR system run without internet network?

    Yes, because the camera system belongs a solated network. it doesn't requst any available internet mandatory.

    How do I enable remote access of security camera system?

    1. Put the camera system into an internet-enable condtion and make sure it's able to aceess internet already after simple setup. 2. Download mobile app and register one cloud account. 3. Add the NVR unit into mobile app by unique ID. all done!

    How to Connect 4COVR POE Cameras to the PoE NVRs

    in fact if the NVR has built-in PoE port, just plug the 4COVR cameras into ,it will auto detect them and add into the device list, the cameras' image will be shown at once. but if there are no PoE port or it's a 3rd party cameras , please enable to power on the camera correctly, then put NVR and Cameras into a same local network. Login the NVR unit to search the known devices. genrally all cameras will be found and enable to be added manually.
