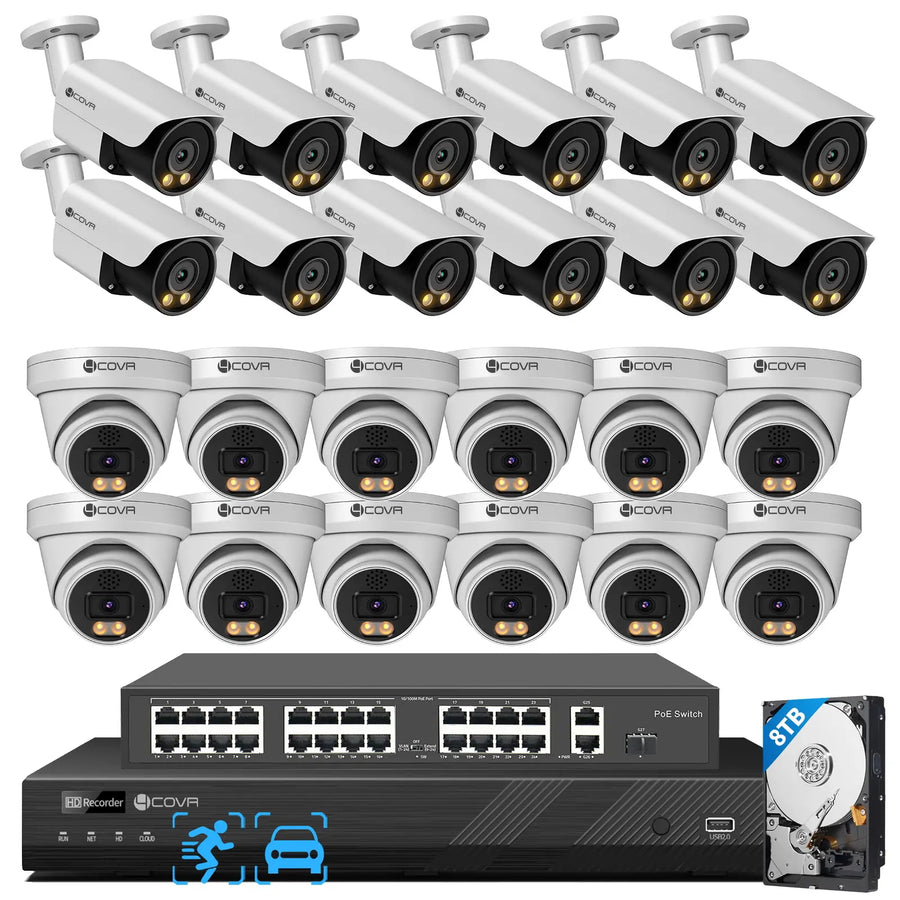

    32 Channel 8MP PoE Camera System | AI Search,Two-Way Audio,No Monthly Fee

    * 4K 8MP Mixed Cameras
    * 32CH NVR with 8TB HDD, Extendable 20TB
    * Active Deterrence
    * Two-Way Audio
    * Smart Detection & Playback
    * GuardViewer for Remote View & Playback
    SKU: B0D9HF7NGD
    Regular Price $2,579.99 USD
    Shipping calculated at checkout.
    Camera Quantity: 24 Pieces
    Camera Color: White

    Out of Stock

    Estimated Delivery: Jun 10 - Jun 14
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    1080p was fine when cameras were just pointing at driveways. 8MP 4K gives you four times the detail — a face 20 meters away, a license plate at night, a package label on a porch. 16 channels of 4K, all recorded continuously. Evidence that actually shows what happened.

    • specific_feature_multiple_scenarios_32ch_nvr specific_feature_multiple_scenarios_32ch_nvr_mobile
    • image_compare_8mp_vision image_compare_8mp_vision_mobile
    • image_compare_dual_light_vision_warehouse image_compare_dual_light_vision_warehouse_mobile
    hightlight_active_deterrence_nvr

    Positive is better than Negative

    Active Deterrence combines warm light strobe and built-in siren to stop intruders before they escalate. Triggered automatically by AI human and vehicle detection — the system acts first, so you don't have to. Warm light is visible at distance without being blinding white.

    hightlight_expendable_hdd_capacity_nvr

    Extend HDD Volume For Longer Retention

    Two SATA bays accommodate up to 2×10TB HDDs — 20TB of total local storage. Pre-installed drives get you recording immediately. Hot-swap support means you can replace or expand drives without powering down the system.

    hightlight_data_security_nvr

    Safe Storage - No Privacy Exposure Risks

    Cloud breaches expose millions of cameras every year. Your front door, your backyard, your driveway — all on someone else's server. 4COVR keeps everything local. Your property, your NVR, your data. No cloud attack surface, no subscription data mining.

    hightlight_two_way_audio_nvr

    Two Way Audio - Hear it. Talk back. In real time.

    Built-in microphone and speaker let you hear what's happening and talk back in real time. Remote two-way audio through the GuardViewer app — check in on the kids after school, warn a delivery driver where to leave a package, or scare off an intruder with your own voice from anywhere.

    Recently viewed

    Different zones, different jobs — entries need active deterrence, perimeters need long-range coverage, and outdoor areas need weatherproof muscle. This 32 channel security camera system gives you both: 8MP bullet cameras for fence lines and gateways, 8MP active deterrence turrets for entries and high-risk zones, all powered by a single 32CH NVR and one PoE switch.

    The 4COVR 32CH AI NVR runs AI detection across all 32 channels simultaneously — no subscription fees. Record at 8MP per channel in H.265. But the real time-saver is AI Smart Search built into the NVR: filter footage by event type — human, vehicle, perimeter security— and jump straight to the relevant clip. What used to take hours of scrubbing through recorded video now takes seconds.

    8MP bullet cameras handle the perimeter — IP67-rated, built for outdoor mounting on walls and soffits, with Smart IR night vision up to 30m in black and white. Active deterrence turrets cover entries and loading areas — dual light technology delivers full-color night vision up to 15m, warm light and siren trigger the instant AI detects a person or vehicle.

    The bundled 24-port gigabit PoE switch powers all cameras over a single cable run. 24×30W PoE ports plus one 60W ultra PoE port handle high-wattage devices. VLAN mode locks down port isolation, Extend mode pushes PoE to 250m for perimeter fence runs.

    Free GuardViewer mobile app (iOS/Android) and browser access put live view and playback in your pocket. Real-time push alerts fire to your phone the moment detection triggers. Two SATA bays ship with 8TB HDD pre-installed and expand to 2×10TB (20TB total) — no cloud, no monthly fees.

    Key Features

    • 32 Channel 4K NVR — Supports 32 IP cameras, H.265 recording up to 12MP per channel, no monthly fees
    • AI Smart Search + Human & Vehicle Detection — Filter footage by event type (human/vehicle/perimeter), find footage in seconds; reduces false alerts across all 32 channels
    • 8MP Bullet Cameras — IP67 weatherproof, Smart IR 30m B&W night vision, wall/soffit mount for perimeter
    • 8MP Active Deterrence Turret — Warm light + siren triggers on AI detection, two-way audio, Dual Light color night vision 15m
    • 24-Port Gigabit PoE Switch — 24×30W PoE + 1×60W ultra PoE port, 290W total budget, VLAN/Extend modes
    • Up to 2×10TB Storage, Expandable — 8TB HDD included, 2 SATA bays support up to 20TB total
    • Real-Time Push Alerts — Instant mobile notifications on AI detection events
    • Remote Viewing & Playback — GuardStation PC softwrae & GuardViewer app for iOS/Android, live view and playback anywhere
    • ONVIF Compliant — Works with any ONVIF IP camera, future-proof system
    • 2-Year Warranty + Lifetime Technical Support — Backed by our commitment to your system
    What is for

    Mixed-zone commercial properties, retail chains, and warehouses that need long-range perimeter coverage plus active deterrence at entries. For installers who need one system that handles both outdoor bullet zones and entry-level turret zones without juggling multiple platforms.

    Smart Search turns hours of footage into seconds of answers. Build your 32-channel mixed camera system today.



    Camera Datasheet
    Specification Name Specification Value
    Camera Shape Waterproof Bullet & Turret Mixed
    Bracket & Installation Celling or Wall mount
    Filed of View approx 110°
    Lens 2.8mm fixed lens
    Night Vision Smart Dual Light distance 15m. Spotlight turns ON when a target appears to record in full-color night vision.
    Video Resolution Main Stream: 20fps@8MP(3840x2160)(default),30fps@6MP(3072x2048)/5MP(2592x1944)/ 4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360)
    Smart Alarm Motion,Human & Vehicle,Cross Line,Perimeter,Face Detection
    Audio Talk Two-Way audio
    Power Input 12 VDC ± 10%, < 8W
    PoE Power IEEE 802.3af, 48V, active
    Operating Temperature -20℃-(+50)℃, 10%-90%RH
    NVR Datasheet
    Specification Name Specification Value
    Max. Channels 32CH Video Input, Max. 12MP resolution
    Max Input/Record 160Mbps/128Mbps
    Display Output 1*HDMI, 4K (3840 × 2160) 1* VGA ,1920 × 1080
    Simultaneous Playback Smart Off: 2 x 12MP/32 x D1 Smart On: 2 x 4K/ 32 x D1
    HDD Capacity 2 SATA Interfaces, each max 10TB capacity
    RAID Disk N/A
    Audio Input/Output 1*Input / 1*Output
    Alarm In/Output N/A
    USB Interface 2 * USB2.0, 1* USB3.0
    Network Interface 2*RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
    PoE Interface N/A
    PoE Max Power N/A
    Smart Event Search Yes
    Software & App GuardStation for Mac & Windows, Guard Viewer For iOS & Android
    Power Supply (without HDD) DC 12 V/5 A,≤ 12W
    Working Environment -10 ℃ to 50 ℃ (14 ℉ to 122 ℉),Humidity ≤ 90% RH (non-condensing)
    Weight (without HDD) ≤ 2Kg (4.4lb)
    Dimensions 380mm × 315mm × 53mm (15.0"×12.4"×2.1")
    Warranty 2 Years Quality Warranty
    Documents
    Camera Specification Sheet Download
    NVR Specification Sheet Download
    Quick Guide Download
    User Manual Download

    Dimensions & Interfaces

    box_inside_37y_97k_32ch_kit
    • 1. 32ch Commercial NVR Unit *1
    • 2. 24-Port PoE Switch * 1 (Power cord included)
    • 3. 97K Waterproof Turret Camera * (12)
    • 4. 37Y Waterproof Bullet Camera * (12)
    • 5. 8TB Hard Disk * 1
    • 6. Mouse * 1
    • 7. Short Ethernet Cable * 1
    • 8. NVR Power Adapter * 1
    • 9. Mounting Screw Groups & Driver * (24)
    • 10. Waterproof Lid * (24)
    • 11. User Manual * 1

    Turely Plug & Play Power-ON & Connection

    Complete the installation, configuration within half an hour.

    diagram_connection_system_image_32ch_kit

    FAQs

    Find quick answers to common questions

    Product & Usage

    Does this NVR system support 24/7 recording?

    Yes, 4COVR Camera System supports 24/7 recording,Not only that, it support event-triggered recording to save critical footage. all recording will be overwritten if the storage is full.

    Does 4CVOR NVR support recordings backup?

    Yes, normally you can use protable HDD or U-disk to export the critical recordings as evidence.Just plug the units into NVR through USB port ( better USB3.0). Search and select the footage that you need.After clicking "backup" button,the data will be saved into units.

    Can 4COVR NVR system run without internet network?

    Yes, because the camera system belongs a solated network. it doesn't requst any available internet mandatory.

    How do I playback recordings?

    Stored footage on the recorder can be accessed remotely using the compatible app or on the recorder itself. Refer to your recorder's manual for playback instructions.

    Is there a mobile app for remote monitoring, and is it compatible with both iOS and Android?

    Yes, 4COVR offers remote access and monitoring via Guardviewer for NVR system, thatis accessible on both iOS and Android.

    Shipment & Warranty & Payment

    1. What are your payment options? And what currencies do you support?

    You can use PayPal (available in 202 countries and 25 currencies) to purchase Reolink security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account. See details ofPayment Policy.

    2. How much are the customs duties?

    Customs duties depend on where your items are shipped from and shipped to. See details in the Shipping Fees part of Shipping & Delivery Policy.

    3. Where can you ship? How long will it take to receive my items?

    We sell security cameras to the United States, Germany, the United Kingdom and other dozens of countries. And we handle orders within 24 hours and pass the packages to our forwarders within 48 working hours. The delivery time varies due to where your items are from and shipped to.
    See details here Shipping & Delivery Policy.

    4. Is there an option to extend the warranty?

    Yes, we provide compatible parts and add-ons to extend the life of your system.

    5. Do you provide instruction manuals or usage guides?

    Every product comes with a detailed user manual, and digital guides are available online.

    6. How fast is shipping and delivery?

    Orders ship within 72 hours, and delivery typically takes 3-5 business days.

    7. Do you offer bulk or corporate purchasing options?

    Yes, 4COVR provides special pricing and packages for business or team orders.

    8. How can I contact customer support if I need help?

    You can reach our support team by email or phone — we’re here to assist you.
